16 Slot Exhaust Fan Motor Winding Data
Connection Diagram / December 10, 2020

16 Slot Exhaust Fan Motor Winding Data || Mini Exhaust fan motor winding. plastic body Exhaust fan motor winding data also described in this post. Fresh Air Fan Motor Winding.

This is also Electric motor rewinding data.

16 Slot Exhaust Fan Motor Winding Data || Mini Exhaust fan motor winding.
Mini Exhaust Fan,Fresh Air Fan Motor Winding.



16 Slot Exhaust Fan?


in this post, we have to rewind 16 Slot Exhaust Fan Motor Winding. This is also called a mini exhaust fan. In this post, we have shown the full information of its winding and also the full information of its winding data with VIDEO. You can also get the benefit of its winding with video and some more useful winding tips.

 इस पोस्ट में हमने 16 स्लॉट एग्जॉस्ट फैन मोटर वाइंडिंग को रिवाइंड किया है। इसे मिनी एग्जॉस्ट फैन भी कहा जाता है। इस पोस्ट में हमने इसकी वाइंडिंग की पूरी जानकारी दी है और VIDEO के साथ इसके वाइंडिंग डेटा की पूरी जानकारी भी ली है। वीडियो के साथ इसकी वाइंडिंग और कुछ और उपयोगी वाइंडिंग टिप्स।



  Mini Exhaust Fan Full Winding Video.

16 SLOT EXHAUST FAN MOTOR WINDING







Fresh Air Fan Motor Winding.


 It is a 16-slot plastic body exhaust fan. This is also known as Fresh Air Fan Motor Its blades are also made of plastic. It has a small motor which is mostly winding with the number 37. A total of 8 coils are put in it. There are 4 Coils running and 4 Coil starting winding. Its pitch is 1 -4. The winding of this motor is a bit tight. And its winding number is also a bit finer. That is why you should do its winding with little care. The connections of this motor are normal.

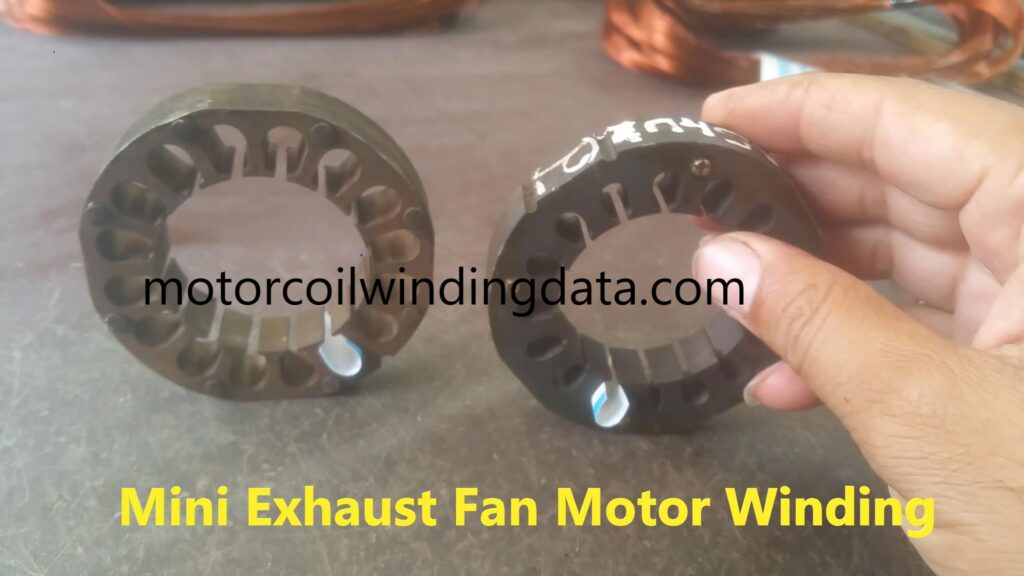

Fresh air motor Have 3 Different Types Stator


fresh air 1

Normally in fresh air motor, we have found 3 Types of Motor Stator. We recommend you to before you Rewinding Fresh Air Fan Please Examine the stator winding Stamping First.

     यह एक 16 स्लॉट का प्लास्टिक बॉडी का एग्जॉस्ट फैन है.इसके ब्लेड्स भी प्लास्टिक के होते है. इसमें एक छोटी सी मोटर होती है जिसको ज्यादातर 37  नंबर से वाइंडिंग किया जाता है।  इसमें टोटल 8  कॉइल्स डालते है। 4  कएल रनिंग के और ४ ही कएल स्टार्टिंग के होते है। पिच इसकी 1 -4  होती है। इस मोटर की वाइंडिंग थोड़ी सी टाइट होती है। और इसका वाइंडिंग का नंबर भी थोड़ा सा बारीक होता है। इसीलिए आपको इसकी वाइंडिंग थोड़ी सी सावधानी  से करनी चाहिए। इस मोटर के कनेक्शन नार्मल ही होते है।


Fresh Air Fan Motor and Mini Exhaust fan Motor winding data

Fresh Air Fan Motor and Mini Exhaust fan Motor में ज्यादातर तीन टाइप के स्टेटर आते है.आप इस मोटर की वाइंडिंग करने से पहले स्टोर की जाँच जरूर करे





    16 Slot Exhaust Fan Motor Full Winding Data Is Here.










Core length             =    5 soot

Inner Diameter     =    1 inch 6 soot

Outer Diameter    =    3 inch

Slot.   16

Watts  85

Rpm 1440

4 pole motor winding.

Capacitor 2 mfd in 220 volts to 240 volts.

2 mfd in the down voltage area.

[i2pc pros_icon=”icon icon-star-2″ cons_icon=”icon icon-hand-o-right” show_title=”true” title=”Mini Exhaust Fan Running Winding Data” show_button=”true” pros_title=”Motor Coil Winding Data” cons_title=”Fresh Air Fan” link=”https://amzn.to/3hr32Jr” ][i2pros]Coil Pitch.
Coil Turns.
motorcoilwindingdata.com
Wire Number.
Coil Size.
[/i2pros][i2cons]1-4
690
motorcoilwindingdata.com
37 Number Copper Wire.
UPDATE-SOON
[/i2cons][/i2pc]



Running pitch                  1-4

                         Coil Rounds                    1-4 (1 baar gumana)

Coil. Pitch                        1-4.

Turn   690

Swg  (Standard wire gauge)  = 37 Number (Copper wire)

16 Slot Exhaust Fan Motor Starting Winding Data.

Starting pitch   1-4

Turn 630.

Swg  =   37 Number (Copper Wire)

Total coils 8 pc

[i2pc pros_icon=”icon icon-star-2″ cons_icon=”icon icon-hand-o-right” show_title=”true” title=”Mini Exhaust Fan Starting Winding Data” show_button=”true” pros_title=”Motor Coil Winding Data” cons_title=”Fresh Air Fan” link=”https://amzn.to/3hr32Jr” ][i2pros]Coil Pitch.
Coil Turns.
motorcoilwindingdata.com
Wire Number.
Coil Size.
[/i2pros][i2cons]1-4
630
motorcoilwindingdata.com
37 Number Copper Wire.
UPDATE-SOON

[/i2cons][/i2pc]

Fresh Air Motor Buy Here From Our Amazon Shop.



[maxbutton id=”1″ url=”https://www.amazon.in/shop/rajrecords” text=”Buy From Amazon” ]



16 Slot Exhaust Fan Motor Winding Data || Mini Exhaust fan motor winding.
EXHAUST FAN MOTOR WINDING DATA

4 coils in running

and

4 coils in. starting

Coil size is (update soon) inch

(This is single speeds winding motor.)

================================================================
