2hp Single Phase Induction Motor Winding Data

2hp single phase induction motor winding data In this post we have explained about the winding of Single Phase induction motor and also shown the Single-phase motor connection diagram, the single-phase motor we have also shown the Induction Motor connections with a capacitor of single face motor and also In the same, how you can set the single face motor clutch plate is also mentioned.

Single-Phase Motor Capacitor Rating.

CAPACITOR=200-250 (starting)

36 mfd (running)

PHASE =1 PHASE

HP = 2

AMP =12

Topics Cover In This Post

1 2 hp single phase induction motor winding data.
2 Single Phase Motor Connection Diagram
3 Single-phase motor connection pdf
4 6 lead single phase motor wiring diagram
5 Single Phase Motor Connection With Two Capacitor
6 Single-phase motor connection with clutch-plate diagram.
7 2 Hp Single Phase Motor Winding Video.
8 Motor winding data other useful post
9 LIKE OUR SOCIAL-PAGE.

2 hp single phase induction motor winding data.

Slot=24

Running pitch 1=3, 1-5, 1-7 , 1-9

Running turn 15 37 50 50

Running swg = 19 (single)

Copper Wire weight = 2 kg (4 SET RUNNING WINDING)

Starting Winding Pitch 1=6, 1-8, 1-10

Staring Winding Turn 22 30 35

Starting Winding Wire Number swg = 21.5 (SINGLE) COPPER

Copper weight = 730 gm (TOTAL STARTING WINDING)

Core length = 115

Stater diameter = 40

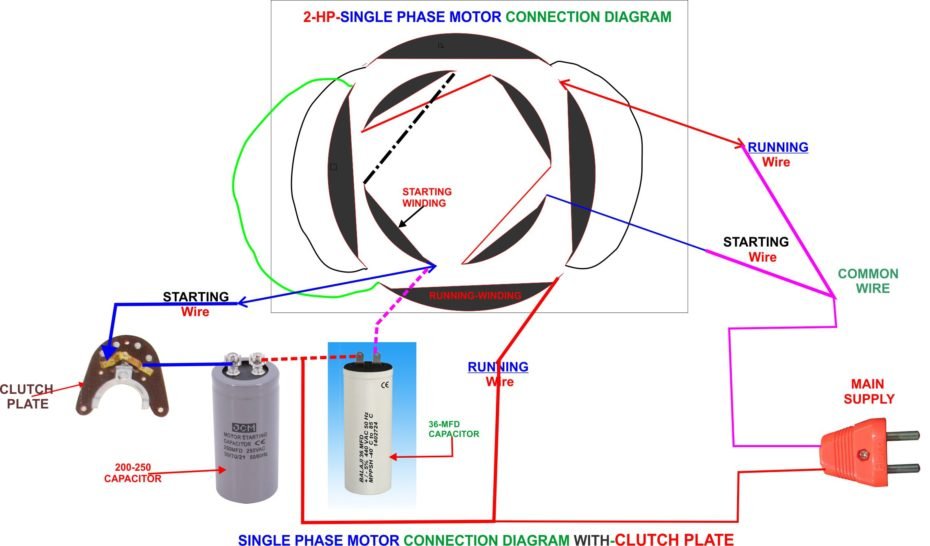

Single Phase Motor Connection Diagram

The single face motor comes with 2 wire running winding and two-wire starting winding. Two wires will come out of the clutch plate and if the motor is more than two hp, then it will have two wires of a running capacitor and two wires of starting capacitor. In the following diagram, we have understood the Single Phase Motor Connection Diagram in great detail how you can make connections of all these wires.

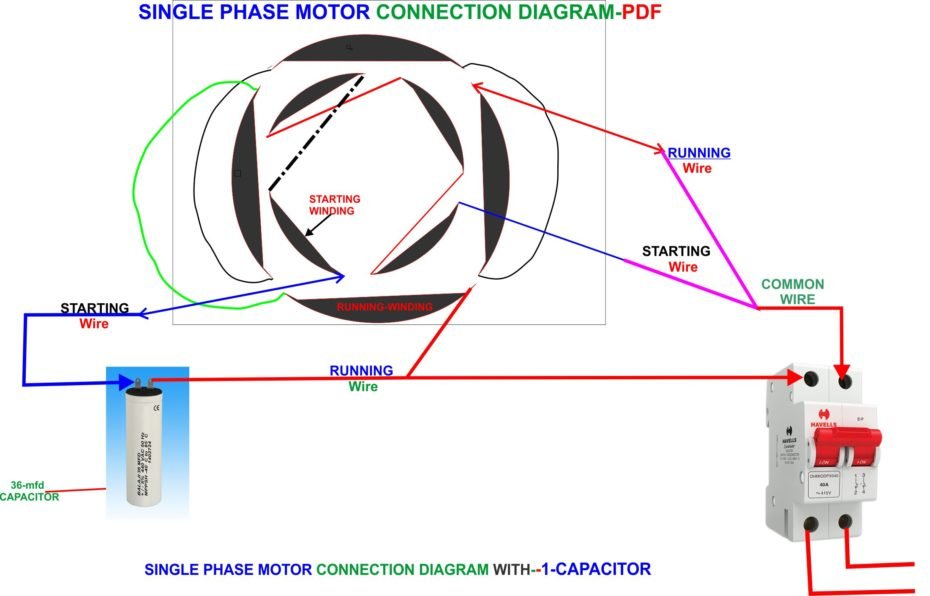

Single-phase motor connection pdf

The Single Face Motor Connection pdf You can understand by looking at the following diagram. There are 2 wires input voltage power supplies coming in this connection diagram, and where only one capacitor is used, such connections are mostly done in 1hp single-face motors and smaller ones like 1 / 4hp, 1 / 2hp etc. 1 hp is in single face motor, it has only one capacitance in small single face motors. This capacitor can be running or starting a capacitor.

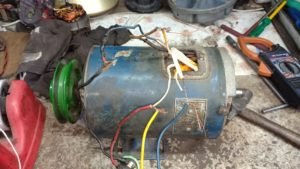

6 lead single phase motor wiring diagram

The motor which has wires coming out of the total consists of two wires running winding and two wires starting winding and two wires of the Centrifugal switch or Clutch plate, also Total-6 Lead Single phase motor in addition, as a 3 horse power motor has a running capacitor. The power can be 200-250 and a single running capacitor is applied, which is rated according to the input voltage, mostly these capacitors have a power rating of 36-mfd.

Single Phase Motor Connection With Two Capacitor

PHOTO 20190323 104408 scaled — single phase motor connection with two capacitor-motorcoilwindingdata.com

A motor with Two Capacitors is mostly power above two HP. Two capacitors are mounted in a 2 HP single face motor, one is the running capacitor and the other is the starting capacitor. Both capacitors are of different power ratings with running capacitors of 150-200 MFD, 200-250 MFD power rating. Starting capacitors can be mostly 36-MFD, 46 MFD and above the power rating, their power rating depends on the power voltage coming from the rear.

single phase motor connection with two capacitor-motorcoilwindingdata.com

Single-phase motor connection with clutch-plate diagram.

In Single Phase connection with the clutch, plate one has to be very careful because if the setting of your clutch plate is not correct you will increase the current AMPERE of the motor too much which will cause the starting winding of the Single Phase Motor to burn as well. If the setting of the clutch plate is not correct, the starting capacitor of the single face motor may also explode. Therefore, set the clutch of the single face motor properly. If you feel that the clutch plate is bad, replace it. After setting the single-face motor, you must check the CURRENT-AMPERE CURRENT AMPERE you can check with the AMPERE meter or CLUMP METER. If the setting of the clutch plate is not right, you will change the sound of the motor, there will be too much HUMMING in it. You can also check out our Single phase motor winding data video.
