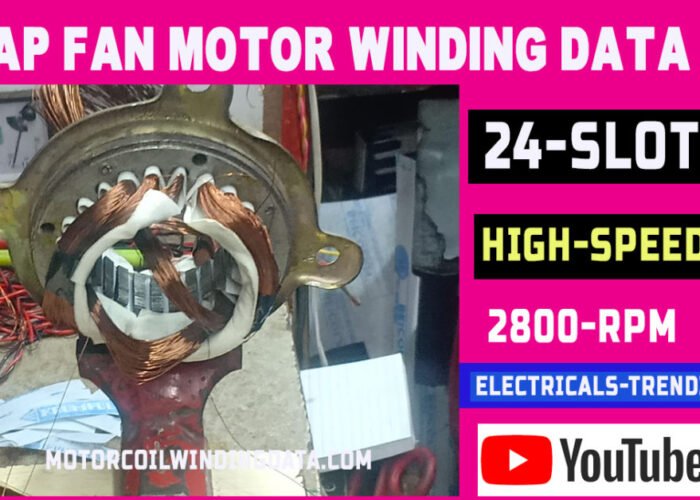

Ap Fan Motor Rewinding Data Hindi

Ap Fan Motor Rewinding

In this article, I m describe Ap Fan Motor Rewinding Data In Hindi full Motor rewinding how to Rewind ap fan motor in Hindi? all-purpose fan motor 2800 RPM winding data Ap fan motor winding rewinding data 2800 RPM

How To Rewind Ap Fan Motor?

เคœเคฌ เคญเฅ€ เคนเคฎ เค•เคฟเคธเฅ€ เคเคชเฅ€ เคซเฅˆเคจ เค•เฅ€ เคฎเฅ‹เคŸเคฐ เค•เฅ€ เคตเคพเค‡เค‚เคกเคฟเค‚เค— เค•เคฐเคจเคพ เคธเฅเคŸเคพเคฐเฅเคŸ เค•เคฐเฅ‡เค‚เค—เฅ‡ เคคเฅ‹ เค‰เคธเคฎเฅ‡เค‚ เคนเคฎ เคŸเฅ‹เคŸเคฒ เคšเคพเคฐ Coils เคกเคพเคฒเฅ‡เค‚เค—เฅ‡ เคœเคฟเคจเคฎเฅ‡เค‚ เคธเฅ‡ 2 Coil Ap Fan Motor เค•เฅ€ เคฐเคจเคฟเค‚เค— เคฎเคพเค‡เคจเคฟเค‚เค— เค•เฅ‡ เคนเฅ‹เค‚เค—เฅ‡ เค”เคฐ เคฆเฅ‹ เคนเฅ€ Coils Ap Fan เค•เฅ€ เคฎเฅ‹เคŸเคฐ เค•เฅ‡ เคธเฅเคŸเคพเคฐเฅเคŸเคฟเค‚เค— เคตเคพเค‡เค‚เคกเคฟเค‚เค— เค•เฅ‡ เคนเฅ‹เค‚เค—เฅ‡ This is the Running winding, coil turn pitch and style.you can watch its part 2 for starting winding and its style.

Ap Fan Motor Rewinding Data
Ap Fan Motor Rewinding Data

Stamping Details.

  • Core length   6 SOOT inches.
  • Slot.   24.
  • Watts  110.
  • Rpm 2800.
  • Power Supply = 220 Volt
  • 2 pole motor winding.
  • WINDING WIRE โ€“ COPPER WIRE.
  • Capacitor 3.15 mfd in 220 volts to 240 volts.
  • Total Running Winding Coils = 2 pc
  • Toral Starting Winding Coils = 2 pc.
  • Coil Size = 27 INCH.

Ap Fan Motor Stamping Details.

Core length6.Soot
Slot24
Watts110
Rpm2800
Power Supply220v
Pole2
Winding WireCopper
Capacitor3:15 Mfd
Running Coils2 Set
Starting Coils 2 Set
Copyright PropertyMotorcoilwindingdata.com
ap fan motor winding data

Ap Fan Motor Full Rewinding Data

  • CORE LENGTH  3/4 INCH
  • Inner Diameter = 1.87 Inch.
  • Outer Diameter = 3.50 Inch
  • Running winding pitchย  ย  ย  ย 1-8ย  ย 1-10ย  1-12
  • Running winding turnsย  ย  ย  ย 330 – 330 – 330
  • STANDARD WIRE NUMBER = 36

    ============================================

    Ap Fan Starting pitchย  ย  ย  ย  ย  ย 1-8ย  1-10ย  ย 1-12

    Starting winding coil turnsย  310ย  ย 310ย  ย 310
    STANDARD WIRE G NUMBER = 36

Ap Fan Motor Rewinding Data.

Core Length22mm
Inner Diameter1.87 inch
Outer Diameter3.50 inch
Running Coil Pitch1-81-101-12
Ap Running Coil Turn350330330
Standard Wire Number363636
Wire TypeCopperCopperCopper
Copyright Property OfMotorcoilwindingdata.com
Starting Coil Pitch1-81-101-12
Ap Running Coil Turn320310310
Standard Wire Number363636
Wire TypeCopperCopperCopper
Coil Size27-Inch
ap fan motor winding data

Ap Fan Motor Rewinding data  Video.

ap fan motor winding video

Ap Fan Motor Winding Connection Video.

Ap Fan Motor Fitting Video.
