1.25 inch Cooler Motor Winding Data

Running Winding Data

• Slot=24
• Rpm = 1400
• Volts = 220v
• Pole = 4 Pole
• Capacitor  = 5 Mfd
• Core Length = 1.25 Inch
• Running pitch                         =  1-4  &   1-6
• Running Winding Coil Turn   =   135      270
• Running Winding Wire No = 28 No
• Motor Winding Wire Type = Copper Wire

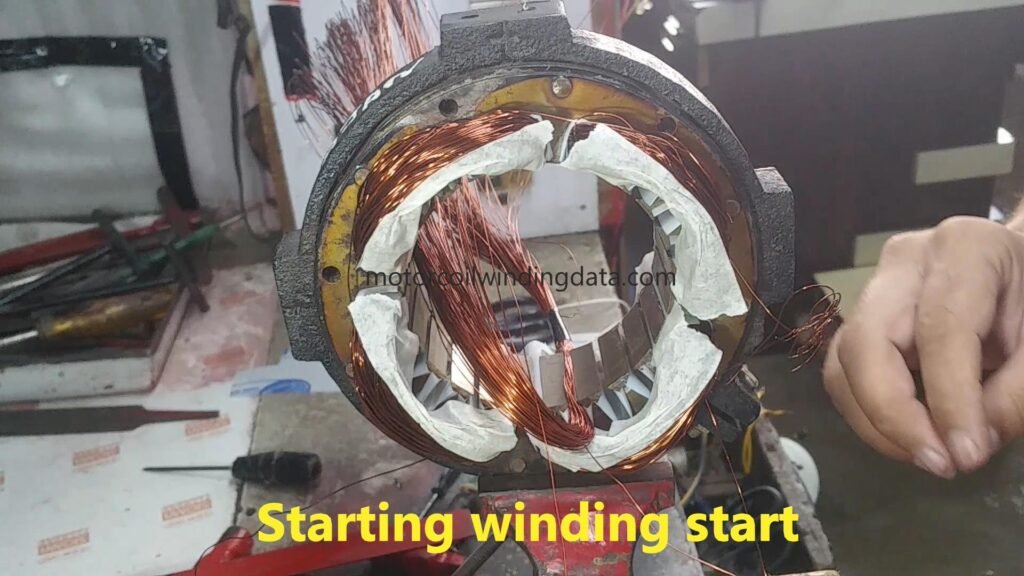

Starting Winding Data

• Starting Coil pitch     =  1-4  &   1-6
• Starting Turn              =  160      =300
• Starting Wire No    =32
• Total running coils =4coils
• Total starting coils=4coils
•
• Coil Round 1-4 Pitch = Single Round
• Coil Round 1-6 Pitch = Double Round

Cooler motor Heavy Duty 1.2 inch Connection Diagram.

1.25 Inch Cooler Motor Winding Video
