Cooler Motor Winding?
The Cooler Motor Winding is very easy, in this post we have told you how can rewind a 24-slot Cooler motor at 3 speeds. Nowadays 24 Slot Cooler Motor is used in mostly coolers. Whenever the summer season starts, we need a cooler, and then the Motor Winder starts the Cooler motor Rewinding because these Cooler Motors are mostly defective during the summer season.
How Does A Cooler Motor Work?
Uncooled motors eliminate heat in the accommodation of the machine on which they are mounted and in the vicinity by convection. Air-cooled motors have a fan that blows air over the motor housing, causing it to cool down. Liquid cooling motors are cooled with water or oil that flows through the cooling channels in the motor.
24 Slot Cooler Motor Winding Data.
When you want to know The 24 Slot Cooler Motor Winding Data you need to know about what is the Cooler Motor Winding Pitch in the 24 Slot Cooler Motor, how many Cooler Motor Winding Turns will be made, and what is the wire number used, how we can make 24 Slot Cooler connection of its winding will be, everything has been told in detail in this post.
Motor Stamping Core Length And Diameter?
The Cooler Motor Core length is 1 inch, INNER DIAMETER is 3 inches, and OUTER DIAMETER is 5 inches.
Ac-Volts & Supply
This motor will work at 220 volts, it will run on a single-phase supply, and it will work at 50 HZ.

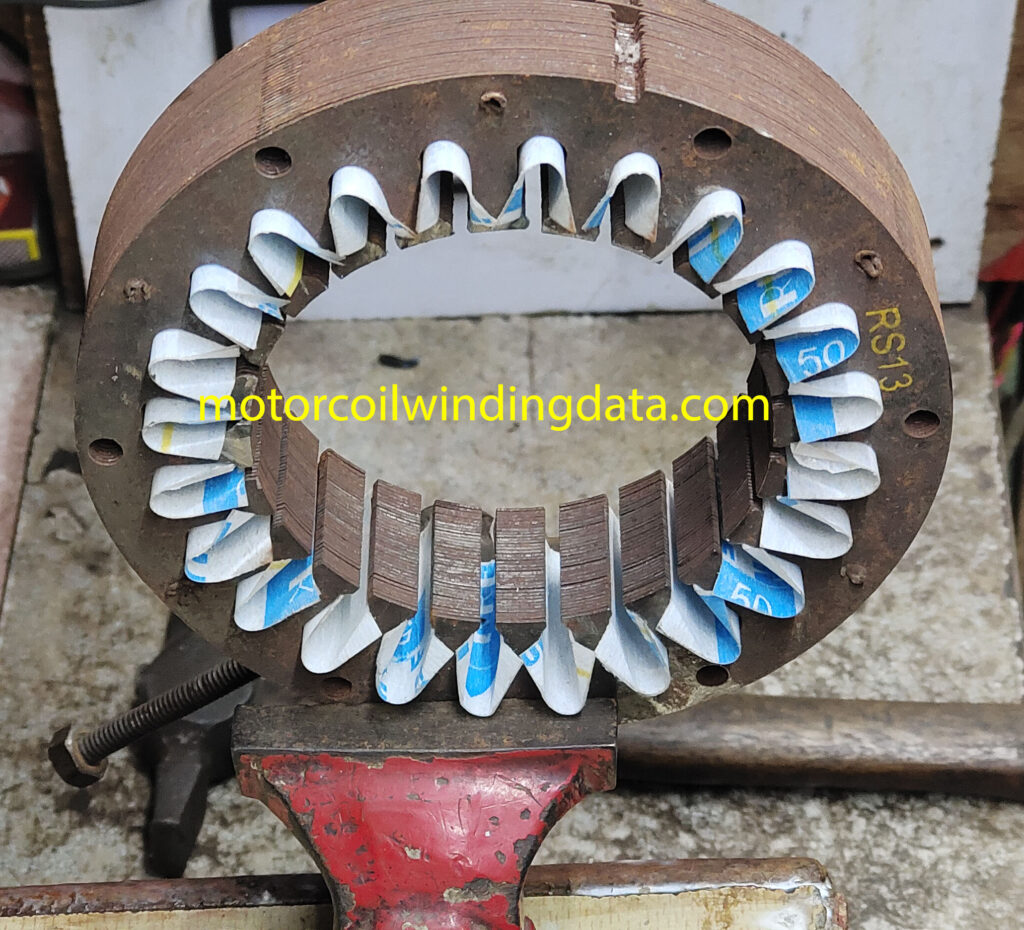

Cooler Motor Stator Stamping Detail See Here.
- Core length 1 inch
- Inner diameter 3 inch
- Outer diameter 5 inch
- Cooler Motor Slot. 24
- The Cooler Watts 370
- Cooler Rpm 1440
- Capacitor = 4 -6 MFD
- 4 pole motor winding.
- Capacitor 4 mfd in 220 volts to 240 volts.
- 5 mfd in the down voltage area.
- VOLTS =220-240 Volts
- RPM = 1440
- Single Phase Supply
- Winding Wire = Copper Wire
Cooler Motor Winding Data Is Here
- Cooler Motor Running Winding Pitch = 1 – 4,
- Running Winding Turns 150 – 300,
- Coils Round 1-4 pitch = ( 1 Round ),
- Coils Round 1-6 pitch = ( 2 Round ),
- Standard Wire Number = 29 Number,
- Winding Wire Type = Copper Wire Winding,
- Coil Size = 25 Inch.
- 24 Slot Cooler Motor Starting Winding Pitch = 1 – 4,
- Starting Winding Turns 150 – 300,
- Coils Round 1-4 pitch = ( 1 Round ),
- Coils Round 1-6 pitch = ( 2 Round ),
- Standard Wire Number = 33 Number,
- Winding Wire Type = Copper Wire Winding,
- Coil Size = 25 Inch.

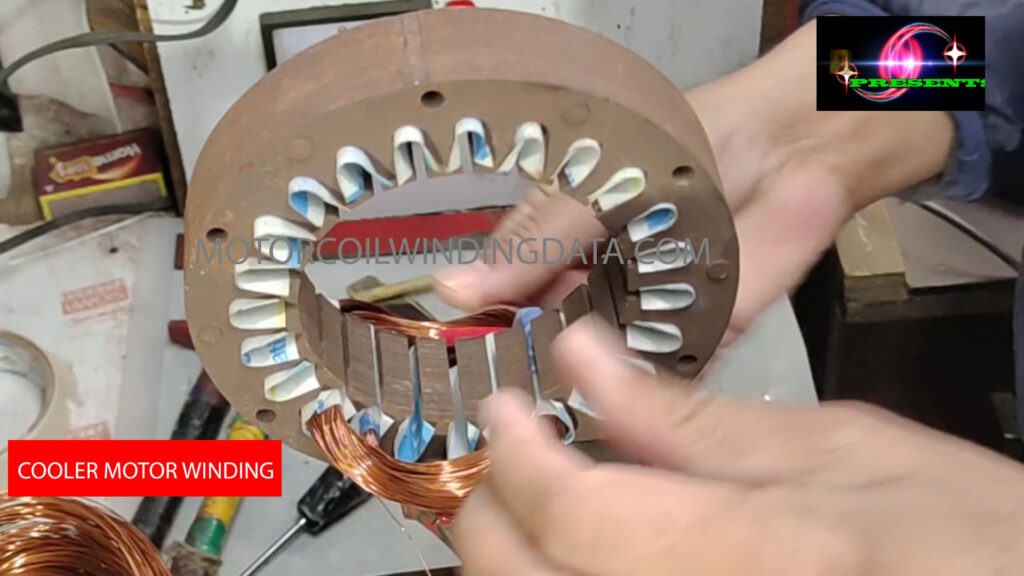

Cooler Motor Winding Video?
24-Slot Single Speed Cooler Motor Running Winding Data?
Running pitch 1-4 and 1-6
Running Turns 150 300
Coil. 1-4 (1 baar gumana)
Coil. 1-6( 2 baar gumana hai)
Running Winding Wire Number = 29 (Copper)
Cooler Motor Starting Winding Data See Here:-
Running pitch 1-4 and 1-6
Running Turns 160 330
Coil. 1-4 (1 baar gumana)
Coil. 1-6( 2 baar gumana hai)
Starting Winding Wire Number = 33 (Copper)
เคชเฅเคฐเคพ เคตเคพเคเคเคกเคฟเคเค เคกเคพเคเคพ เคนเคฟเคเคฆเฅ เคฎเฅเค เคฆเฅเคเคจเฅ เคเฅ เคฒเคฟเค เคฏเคนเคพเค เคเฅเคฒเคฟเค เคเคฐเฅเค
What Is 3-Speed Cooler Motor Winding Data?
Cooler motors mostly Winding in 2 types 3-speed cooler motor winding & single-speed winding Large cooler motor manufacturers make cooler motors at three speeds only. The Largest cooler motor manufacturing company. Like Khaitan, Crompton, Symphony, and Kenstar the cooler motor is made at three speeds only. And there are shopkeepers who make local cooler motors. They only and only. Winding of cooler motor in Single speed only.
3-Speed Cooler Motor Winding Data Coils + Turns Detail
First Start Wire No —-32 —- -Turns ==40 (speed coil)
Next Loop Wire No —32 —— Turns ==60 (speed coil)
Next Loop Wire No —-29 —– -Turns===100 (speed coil)
=========================================
24 Slot Cooler OTHER 3 COILS?
Running Coil pitch 1-4 and 1-6
Running Coils Turns 150 300
Motor winding coils round in pitch. = 1-4 (1 baar gumana)
Motor winding coils round in pitch = 1-6 ( 2 baar gumana hai)
Running Winding wire Number = 29
COIL SIZE = 25.5 INCH
What Is The 2 Speed Cooler Motor Winding Data?
This is a speed coil detail
Pitch 1-4 1-6
Turns 70 130
Swg 32 30
(ย PLEASE NOTE THIS IS 2-SPEED COOLER MOTOR WINDING DATAย )
Which capacitor is used in the cooler?
You can install a 4 Mfd to 6Mfd Capacitor in The Normal 1 inch 24 slots Cooler Motor, where in the village voltage will be low like under 190 volts you can install a capacitor of 6Mfd where the voltage is proper like 220-240 volts as in the urban area where you can install a capacitor of 4 Mfd capacitors.
What is the rpm of cooler motor?
The Motor Rpm will be 1440 and will have RPM of this motor and this motor will work on 2 Pole.
| Power | 370 watt |
| Rpm | 1440 |
| Voltage | 230v |
| Winding | Copper & Aluminum |
| Phase | Single |
ย What is the speed cooler motor winding data?
When winding the three-speed cooler motor, keep its pitch 1-4. Put 150 turns with 29 number wire, which will be in 1 to 4 PITCH, and in 1-6 Pitch, you have to rotate the same coil twice in 1-6 pitch so that its turn will be 300.
Cooler Motor Winding Farma Latest Price
What is the Cooler Motor Connection Diagram?
เคเฅเคฒเคฐ เคฎเฅเคเคฐ เคตเคพเคเคเคกเคฟเคเค 2 เคคเคฐเฅเคเฅ เคธเฅ เคเฅ เคเคพเคคเฅ เคนเฅ เคเค เคนเฅเคคเคพ เคนเฅ เคธเคฟเคเคเคฒ เคธเฅเคชเฅเคก เคเคฐ เคฆเฅเคธเคฐเคพ เคนเฅเคคเคพ เคนเฅ เคฅเฅเคฐเฅ เคธเฅเคชเฅเคก เคตเคพเคเคเคกเคฟเคเคเฅค เคธเคฟเคเคฒ เคธเฅเคชเฅเคก เคตเคพเคเคเคกเคฟเคเค เคฎเฅเค เคเฅเคเคฒ 4 เคคเคพเคฐ เคฌเคนเคพเคฐ เคเคคเฅ เคนเฅ เคเคฌเคเคฟ เคฅเฅเคฐเฅ เคธเฅเคชเฅเคก เคตเคพเคเคเคกเคฟเคเค เคฎเฅเค เคเคพเคฎ เคธเฅ เคเคพเคฎ 6 เคคเคพเคฐ เคฌเคนเคพเคฐ เคเคคเฅ เคนเฅเฅค เคธเคฟเคเคเคฒ เคธเฅเคชเฅเคก เคตเคพเคเคเคกเคฟเคเค เคฎเฅเค เคฒเคพเคฒ เคฐเคเค เคเฅ เคคเคพเคฐ เคเคช เคฐเคจเคฟเคเค เคตเคพเคเคเคกเคฟเคเค เคฎเฅเค เคฒเคเคพ เคธเคเคคเฅ เคนเฅเฅค
เคเฅเคฒเคฐ เคซเฅเคจ เคเฅ เคฎเฅเคเคฐ 5 เคฌเฅเคฒเฅเคกเฅเคธ เคตเคพเคฒเฅ เคนเฅ เคเฅ เคเฅ 1400 RPM เคธเฅเคชเฅเคก เคชเคฐ เคเคพเคฎ เคเคฐเคคเฅ เคนเฅ เคเคฐ เคเคธ เคตเคฟเคกเคฟเคฏเฅ เคฎเฅเค เคนเคฎเคจเฅ เคเคธเคเฅ เคธเฅเคงเฅ เคฆเคฟเคถเคพ เคฎเฅเค เคเฅเคฎเคจเฅ เคเฅ เคฒเคฟเค เคตเคพเคเคเคกเคฟเคเค เคเคฟเคฏเคพ เคนเฅ.
3 Speed Cooler Motor Winding.
When you make a Coil with speed in 3-speed cooler winding, you will first take 32 number wire, and first, you will put 40 Winding Turns with 32 Number Wire after that one Loop will be extracted, then make 60 Winding Turns will be put by same 32 Number Wire. After that, you need to use the 29 Number Wire, and done 100 Winding Turns will be put from that 29 Number Wire.
Starting Winding Coil Turn And Data.
When we rewind the starting winding of the cooler motor, you use 32-number wire, and in 1 to 4 PITCH you make 160 turns, and in 1-6 PITCH, you rotate the same COIL twice so that its turn will be 320.
- Coil Pitch = 1-4 and 1-6
- Turns = 160 and 320
- Coil Wire Number = 32 Number (Copper Wire)
Cooler Motor Winding Connection.
In Cooler Connections you will pull out 6 wires, the Blue wire will be common wire, and white wire will be SLOW-SPEED, and Red wire will be MEDIUM-SPEED, and the Black wire will be HIGH-SPEED. And besides this, there will be two (2) more wires which will be the stars of Capacitors Wire.
You will also see a Cooler Motor Connection Diagram below, by seeing which you will easily understand which wire you have put where, and how to install it. Along with this, we have also given the VIDEO of its WINDING, by seeing which you can wind this motor very easily.

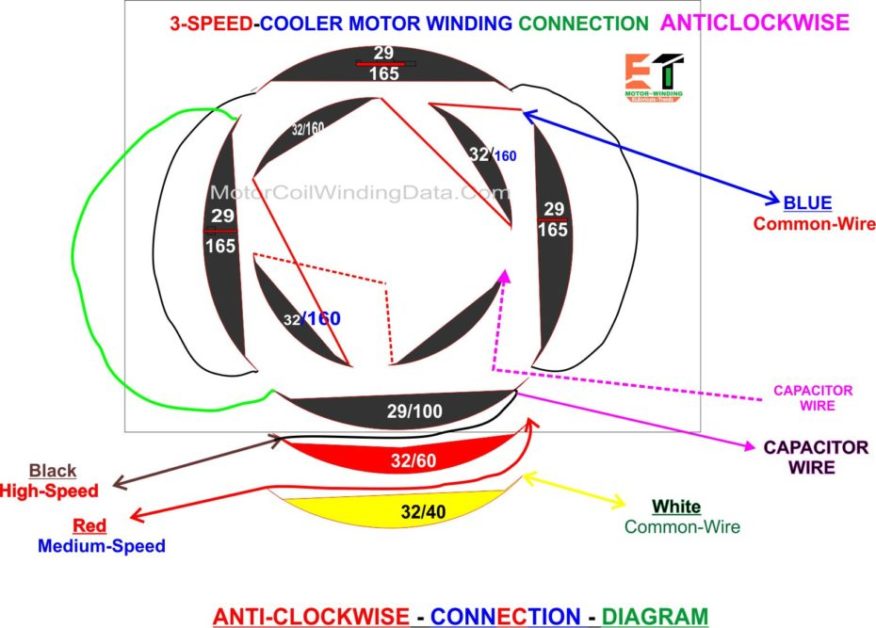

Three Speed Cooler Motor Connection Diagram With Anticlockwise Connection.
ALL motor Winding Connection Diagram See Here:-
เคชเฅเคฐเคพ เคตเคพเคเคเคกเคฟเคเค เคกเคพเคเคพ เคนเคฟเคเคฆเฅ เคฎเฅเค เคฆเฅเคเคจเฅ เคเฅ เคฒเคฟเค เคฏเคนเคพเค เคเฅเคฒเคฟเค เคเคฐเฅเค
Cooler Rewinding Video Here
TOP TRENDS COOLER WINDING VIDEO IS HERE:-
COOLER MOTOR CAPACITOR DETAIL?
You can install capacitors from 4Mfd to 6Mfd, where the voltage will be low, you can install a capacitor of 6Mfd where the voltage is full as in the urban area where you can install a capacitor of 4Mfd,
You can start 1 to 4 Coil Pitch of Running winding of the Cooler motor and 2 SLOT will be left blank in the middle. 1 to 4 cells COIL will be rotated once, 1-6 PITCH ME COIL will be rotated twice
You can start 1 to 4 picture running winding of the Cooler Winding and 2 SLOT will be left blank in the middle. 1 to 4 cells COIL will be rotated once, 1-6 PITCH ME COIL will be rotated twice
Cooler-Motor Winding Connection Diagram
In the Cooler Motor Connections, you will pull out 6 wires, the Blue wire will be common wire, and white wire will be SLOW-SPEED, and Red wire will be MEDIUM-SPEED, and the Black wire will be HIGH-SPEED. And besides this, there will be two (2) more wires which will be the stars of Capacitors Wire.
Cular Motor Winding Connection Video Here.
All motor winding data?
- Cooler motor Rewinding coil turn data
- High-speed ceiling fan motor rewinding in Hindi
- Aluminum wire cooler motor 24-slot
- The exhaust fan motor winding is 18 inches 24 slots
- multi-speed cooler motor connection
- 18โณexhaust fan motor winding data
- How to change a capacitor of the Tulu pump
- High-Speed Wall Fan Motor Winding Data
- Washing Machine #Timer Connection
- Ceiling fan rewinding 12+12
COPYRIGHT CLAIM & CAUTION.
(เคตเฅเคฌเคธเคพเคเค เคเคพ เคธเคพเคฐเคพ เคกเคพเคเคพ เคเฅเคชเฅเคฐเคพเคเค เคนเฅ เคเคฐ MOTORCOILWINDINGDATA.COM เคเฅ เคชเฅเคฐเฅเคชเคฐเฅเคเฅ เคนเฅ เฅค เคเคธเคเคพ เคธเฅเคเฅเคฐเฅเคจ เคถเฅเค เคฒเฅเคจเคพ เคกเคพเคฏเคเฅเคฐเคพเคฎ เคเฅเคชเฅ เคเคฐเคจเคพ Not Allowed ,เคเคฐ เคเคธเคพ เคเคฐเคจเฅ เคชเคฐ เคเคช เคชเคฐ เคเคฐเคตเคพเค เคนเฅ เคธเคเคคเฅ เคนเฅ ,เคเคธเคฒเคฟเค เคเคฌ เคเคฐเฅเคฐเคค เคนเฅ เคตเฅเคฌเฅเคธเคฟเคเฅ เคตเคฟเคเคฟเค เคเคฐเฅ เคเฅเคชเฅ เคเคฐ เคธเฅเคเฅเคฐเฅเคจ เคถเฅเค เคฒเฅเคจเฅ เคเฅ เคเฅเคถเคฟเคถ เคฎเคค เคเคฐเฅเคเฅค
เคงเคจเฅเคฏเคตเคพเคฆ ).
COPYRIGHT CLAIM
ALL RIGHTS ARE RESERVED WITH MOTORCOILWINDINGDATA.COM, MISUSE OF ANY DATA, COPY-PASTING AND SCREENSHOTS,S AND CLICKING PHOTOS OF THE DIAGRAM IS ILLEGAL SO DON’T DO THAT.
How to fix cooler motor winding?
cooler motor agar aapki nahi chal rahi sabse pehle aapko cooler motor ka capacitor ko check karna hoga.i m giving you some tips how you can fix cooler motor winding.
- Common wire = Blue Colour.
- Black Wire = High speed wire
- Red Wire = Medium Speed Wire,
- White Wire = Slow Speed Wire.
Cooler motor me 4coils neeche wali winding me hote hai agar aapki winding dead hai to sabse pehle aapko sabhi coils ko bari bari series lamp se test karna hoga
Why does the cooler fan motor become very hot when it is working
here are some common problem about cooler fan motor became very hot when it is not working.
