Cooler Motor Winding Data With Single Speed :- In this post I have told how Cooler Motor Winding With Single Speed
The winding of this cooler motor is 1400 rpm and this speed cooler motor winding works on 4 pole. The slot of the cooler motor is 24.
Cooler motor mostly comes in 24 and 36 slots, the 24 Slot motor that we have can be in 3 speed and the 36 slots can be Rewind Easy Compare to 24 Slot Cooler Motor with little comfort because the 36 slot motor It has more space than a 24 Slot motor.
Topics Cover In This Post
Single Speed Cooler Motor Stamping Detail
| Slot | 24 |
| Rpm | 1440 |
| Watts | 370 |
| Voltage | 220-240 (Single Phase Supply ) |
| Capacitor | 4 Mfd |
| Core Length | 1 Inch |
| Inner Diameters | 3 Inches |
| Outer Diameter | 5 Inches |
| Pole | 4 Poles |
| Copyright | Motorcilwindingdata.com |
| Winding Wire | Copper Winding |
There are usually two types of winding in cooler motor. One is running coils winding and the other is starting coil winding. Different data are inserted in both. The number of wire in running winding and the number of wire in starting are different. The running winding always has a thicker wire number than the starting winding.
Single Speed Cooler Motor Winding Data?
| Cooler Motor Running Winding Pitch | 1-4 & 1-6 Coil Pitch |
| Running Winding Turns | 150 – 300 |
| Coils Round | 1-4 pitch = ( 1 Round ) |
| Coils Round | 1-6 pitch = ( 2 Round ) |
| Standard Wire Number | 29 Number |
| Winding Wire Type | Copper Wire Winding |
| Coil Size | 25 Inch. |
Single Speed Cooler Motor Starting Winding Data
| Cooler Motor Starting Winding Pitch | 1-4 Coil Pitch |
| Starting Winding Turns | 155 – 310 |
| Coils Round | 1-4 pitch = ( 1 Round ) |
| Coils Round | 1-6 pitch = ( 2 Round ) |
| Standard Wire Number | 33 Number |
| Winding Wire Type | Copper Wire Winding |
| Coil Size | 25 Inch. |

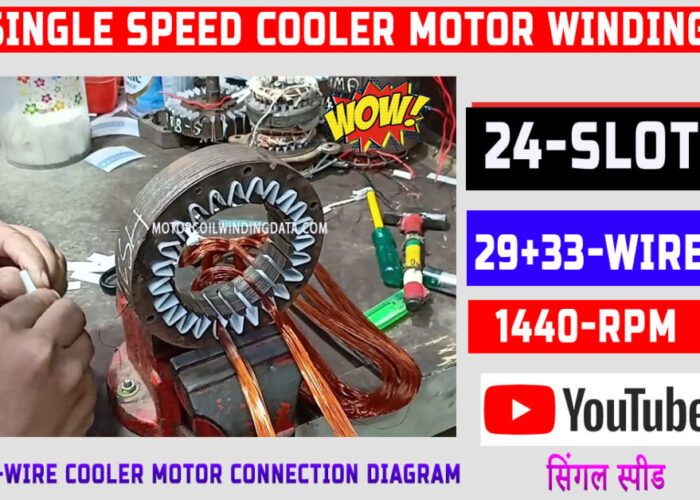

Cooler Motor Single Speed Winding Video:-
What are the 4 wires in cooler motor?
Single Speed Cooler Motor Connection Video?
Which Capacitor is used in Cooler Motor?
Mostly 4 mfd capacitor is used in cooler motor. But where the voltage is low, we can also use 6 mfd capacitor like in village.
